Model Number: AV-30S-2.3-LR

AV-30S-2.3-LR300 Series Vacuum Center System

The 300 Series vacuum toilet and fixture waste system effectively and efficiently collects waste with two 30-gallon collection tanks, dual recirculating pumps and a PLC drive automatic control panel.
  • Single frame, factory-assembled vacuum center
  • Compact size alleviates space constraints
  • UPC and CUPC compliant

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning
Shows specifications for standard configuration. Configuration options may change specifications.
  • Collection Tanks Quantity
    2
  • Vacuum Pump Volume (US Gal. Each)
    30
  • Vacuum Pump Type
    Recirculating Liquid Ring
  • Vacuum Pump Quantity
    2
  • Vacuum Pump HP
    3
  • Maximum "LPV"
    55
  • Maximum Continuous Flow (GPM)
    15
Literature / Videos
MGI Brands Flyer (pdf)MGI Brands Flyer (pdf)PDF712 KB
Modular Made Easy Flyer (pdf)Modular Made Easy Flyer (pdf)PDF4 MB
AcornVac General Brochure (pdf)AcornVac General Brochure (pdf)PDF6 MB
Case Study: Salinas Valley State Prison Silver LEED Project (pdf) AcornVac boosts security and reduces water use at the Salinas Valley State Prison Silver LEED Project PDF2 MB
Case Study: Center for Medical Science (pdf)AcornVac Enlisted to Stop Dangerous Pathogens from Entering the Public Waste Water SystemPDF2 MB
Case Study: Western Virginia Regional Jail (pdf)How Correctional Institutions Stem Crime with Modern Architectural PlumbingPDF2 MB
Case Study: Amazon Warehouse (pdf)High Quality Technical Solutions Solved Difficult Wastewater Engineering ProblemsPDF329 KB
Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail" Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail"PDF5 MB
Can't find what you are looking for? Get in touch

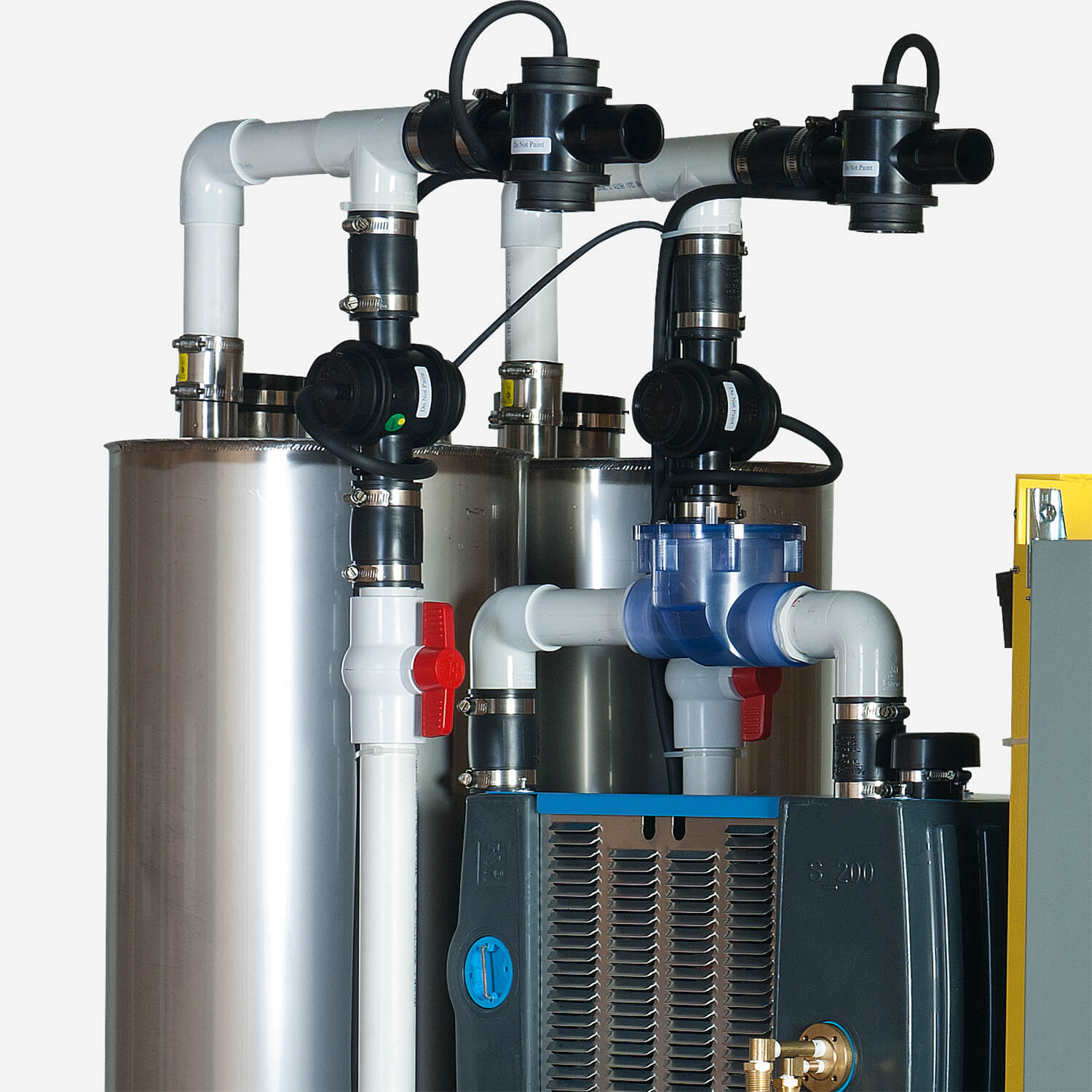

Fully redundant factory assembled vacuum center consists of one frame having two 30 gallon T304 stainless steel waste collection tanks bolted to second frame having two 3 HP recirculating water sealed liquid ring vacuum pumps and a PLC driven automatic control panel.

Product Function:
  • Fully Redundant & Compact Design: 65-1/2”[165cm] Long x 33”[84cm] Wide x 6’-8”[2m] Tall
  • System Weights
    • Dry: 750lbs [350kg]
    • Wet: 1450lbs [650kg]
  • Dual 30 gallon T304 stainless steel waste collection tanks each have a 2” pipe size top waste inlet connection and 3” swing check waste outlet connection.
  • Dual 3 HP vacuum pumps each have a 1/2” water supply inlet for pump water jacket fill float valve and a 1/2” over flow outlet. Pump water is fully recirculated through a cooling system requiring no continuous water supply.

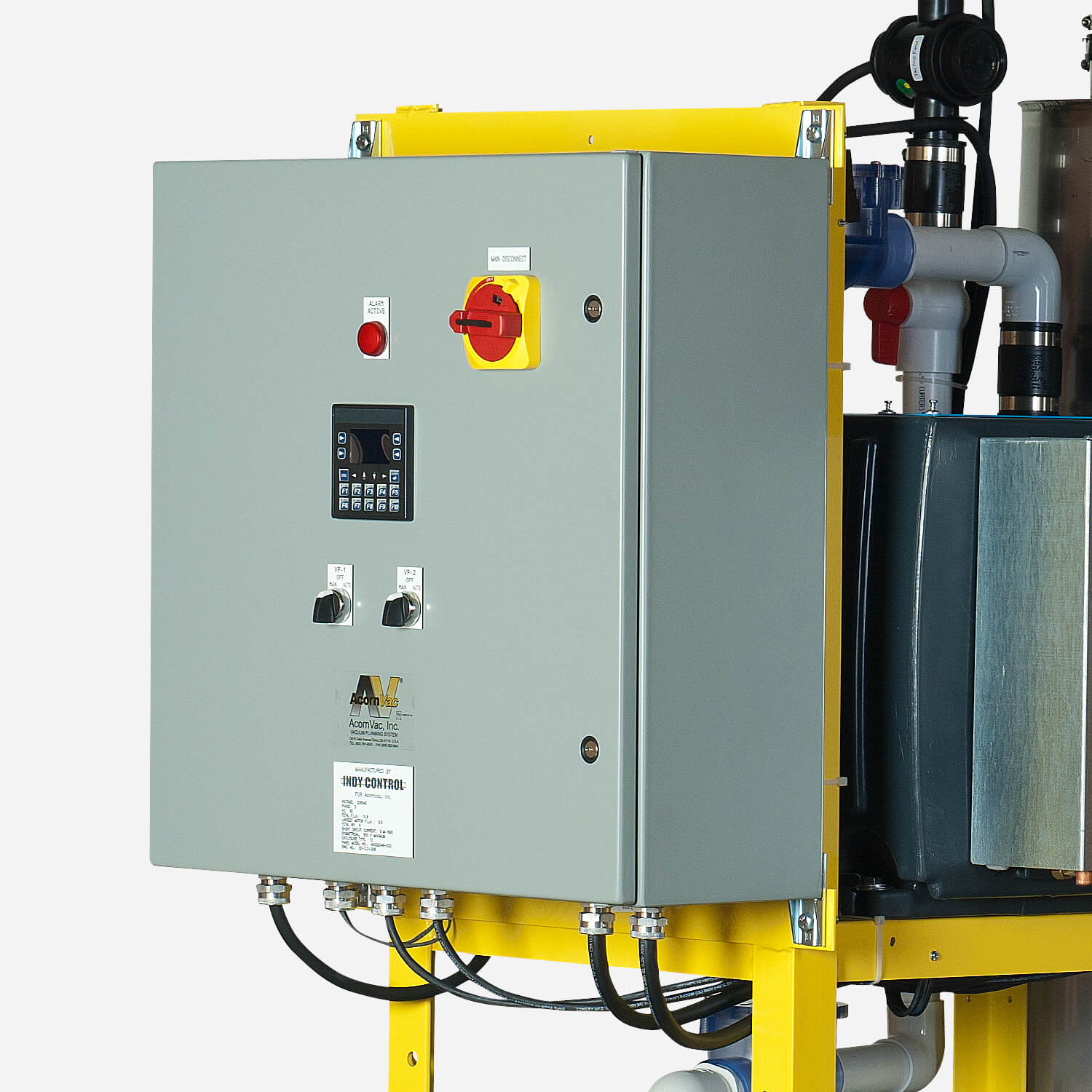

  • Industrial grade panel has PLC driven automation control of vacuum pumps and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light, HOA switches and an operator interface with digital display which shows vacuum system pressure and alarm status.
  • Available 3-Phase 60 Hz Voltages
    • 208 VAC – 20.3 FLA
    • 480 VAC – 11.7 FLA
  • UPC and CUPC compliant
