100 Series Vacuum Center System

Model AV-20S-1.2-LR-BV
AV-20S-1.2-LR-BV Preview
Model AV-20S-1.2-LR-BV

100 Series Vacuum Center System

The 100 Series vacuum toilet and fixture waste system effectively and efficiently collects waste with a single 20-gallon collection tank and a PLC driven automatic control panel.

  • Single frame, factory-assembled vacuum center
  • Compact size alleviates space constraints
  • UPC and CUPC compliant

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Brochures/Flyers
PDF icon
AcornVac General Brochure (pdf)
AcornVac General Brochure (pdf)6 MB
PDF icon
Case Studies
PDF icon
Case Study: Salinas Valley State Prison Silver LEED Project (pdf)
AcornVac boosts security and reduces water use at the Salinas Valley State Prison Silver LEED Project1 MB
PDF icon
Unknown
PDF icon
Article:; Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail"
Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail"4 MB

Specifications

Collection Tanks Quantity1
Vacuum Pump Volume (US Gal. Each)20
Vacuum Pump TypeLiquid Ring
Vacuum Pump Quantity1
Vacuum Pump HP2
Maximum "LPV"10
Maximum Continuous Flow (GPM)5

Details

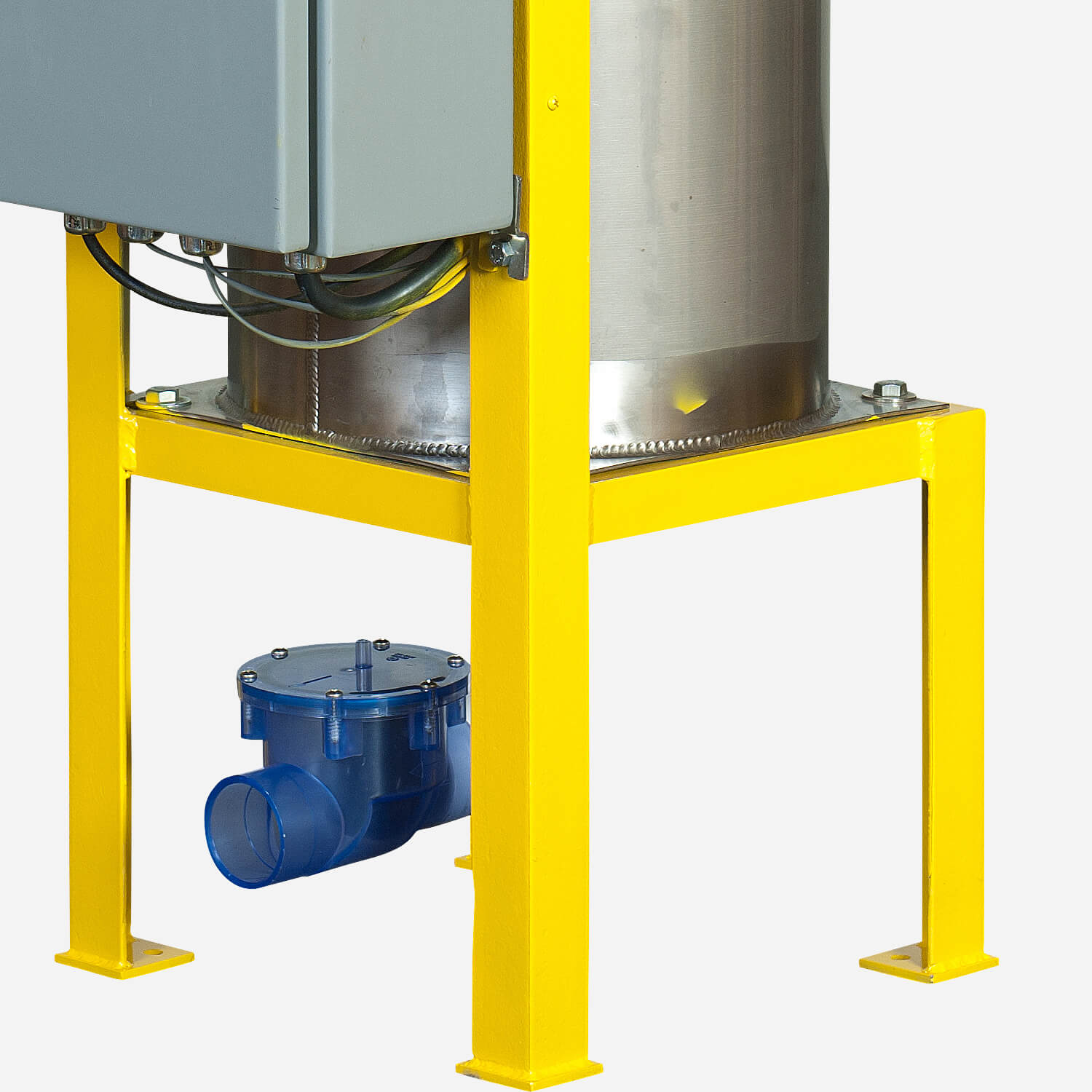

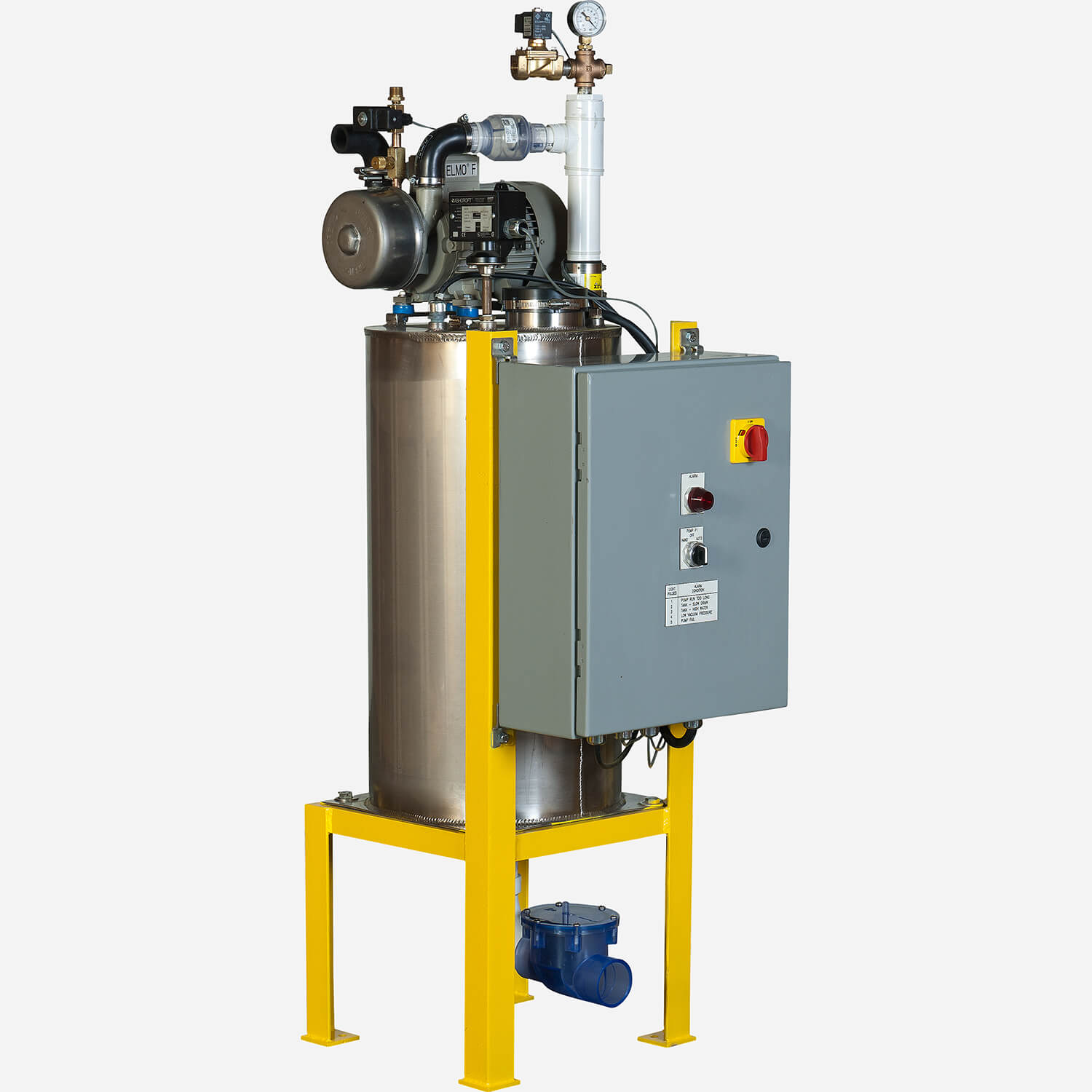

Single frame factory assembled vacuum center consists of a 20 gallon T304 stainless steel waste collection tank, a 2 HP water sealed liquid ring vacuum pump, and a PLC driven automatic control panel.

Product Function
  • Compact Design: 25" [63.5 cm] Long x 18" [46cm] Wide x 5' [1.5 m] Tall
  • System Weights
    • Dry: 200lbs [90kg]
    • Wet: 375lbs [170kg]
  • 20 gallon T304 stainless steel waste collection tank has 2” pipe size top waste inlet connection and 2” swing check waste outlet connection.

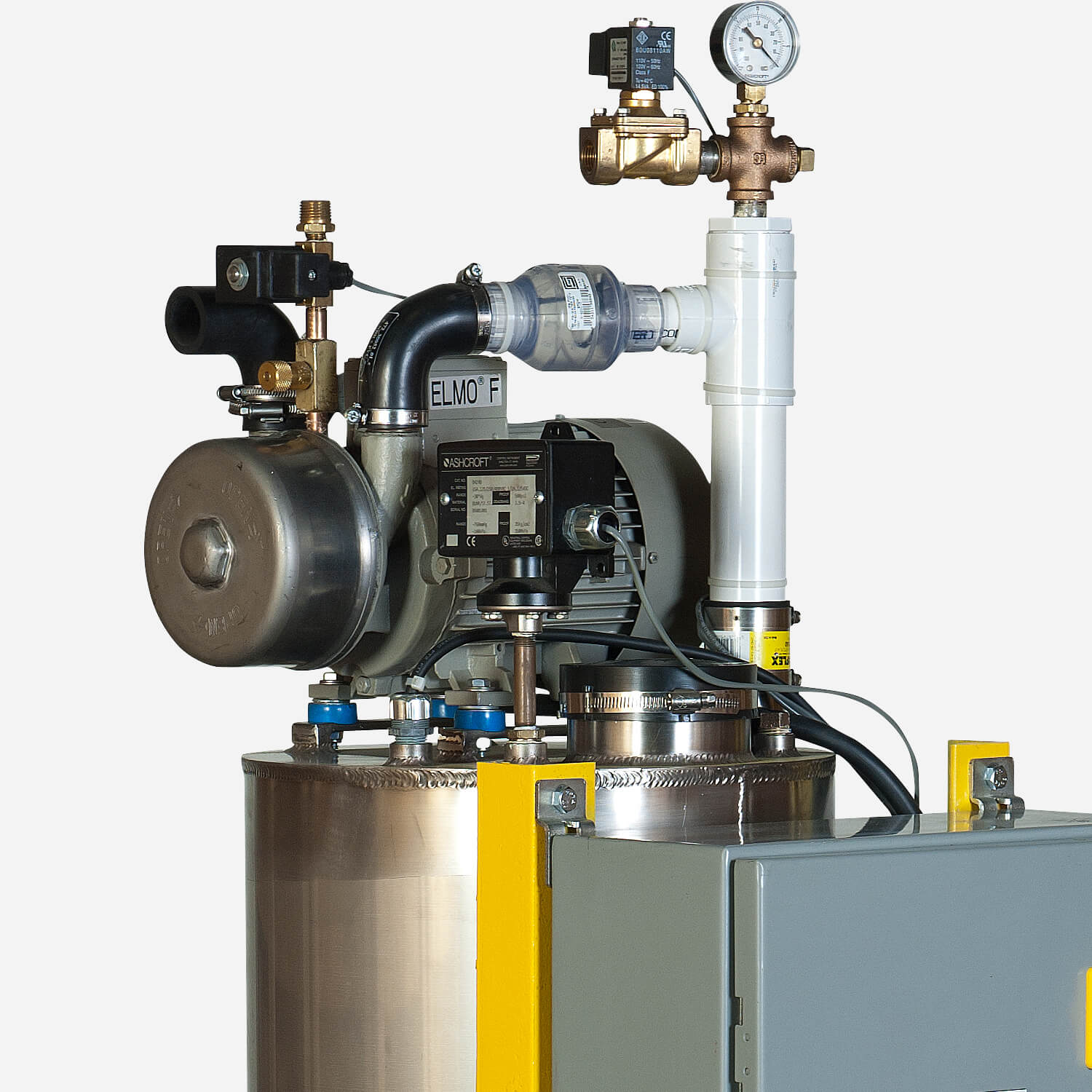

  • 2 HP vacuum pump has 1/2” water supply inlet. Pump runs only on-demand. Water flows only when pump is on.

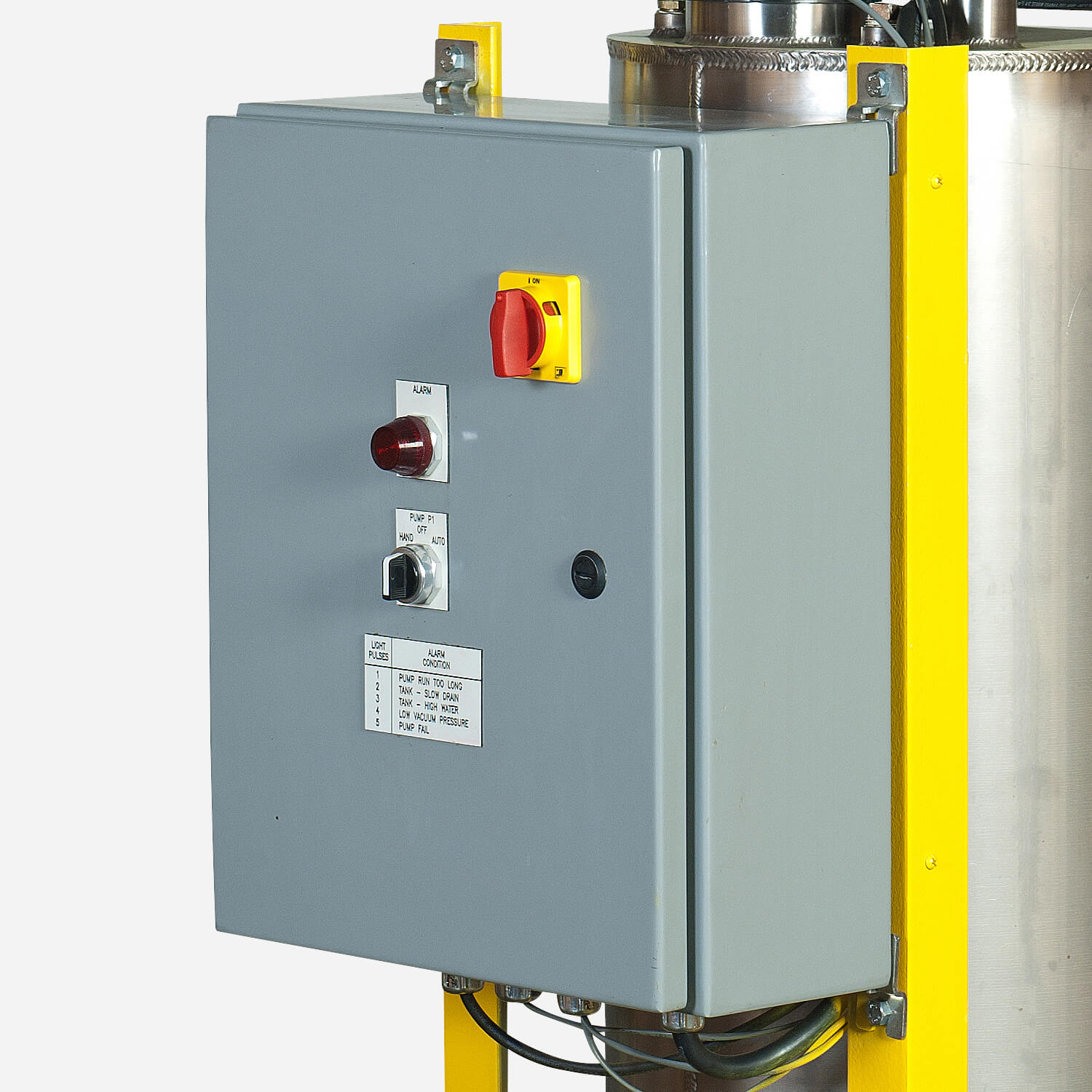

  • Industrial grade panel has PLC driven automation control of vacuum pump and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light and an HOA switch.
  • Available 3-Phase 60 Hz Voltages:
    • 208 VAC – 5.8 FLA
    • 480 VAC – 3.4 FLA
  • Dial face analog vacuum pressure gauge.
