1000 Series Vacuum Center System

Model AV-60S-3.5-LR-3T-STK
AV-60S-3.5-LR-3T-STK Preview
Model AV-60S-3.5-LR-3T-STK

1000 Series Vacuum Center System

The 1000 Series vacuum toilet and fixture waste system is the highest-grade model, effectively and efficiently collecting the most waste with three 60-gallon collection tanks, triple recirculating pumps and a PLC driven automatic control panel.
  • Single frame, factory-assembled vacuum center
  • Compact size alleviates space constraints
  • UPC and CUPC compliant

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)718 KB
PDF icon
Brochures/Flyers
PDF icon
AcornVac General Brochure (pdf)
AcornVac General Brochure (pdf)6 MB
PDF icon
Case Studies
PDF icon
Case Study: Salinas Valley State Prison Silver LEED Project (pdf)
AcornVac boosts security and reduces water use at the Salinas Valley State Prison Silver LEED Project1 MB
PDF icon
Unknown
PDF icon
Article:; Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail"
Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail"4 MB

Specifications

Collection Tanks Quantity3
Vacuum Pump Volume (US Gal. Each)60
Vacuum Pump TypeRecirculating Liquid Ring
Vacuum Pump Quantity3
Vacuum Pump HP5
Maximum "LPV"95
Maximum Continuous Flow (GPM)60

Details

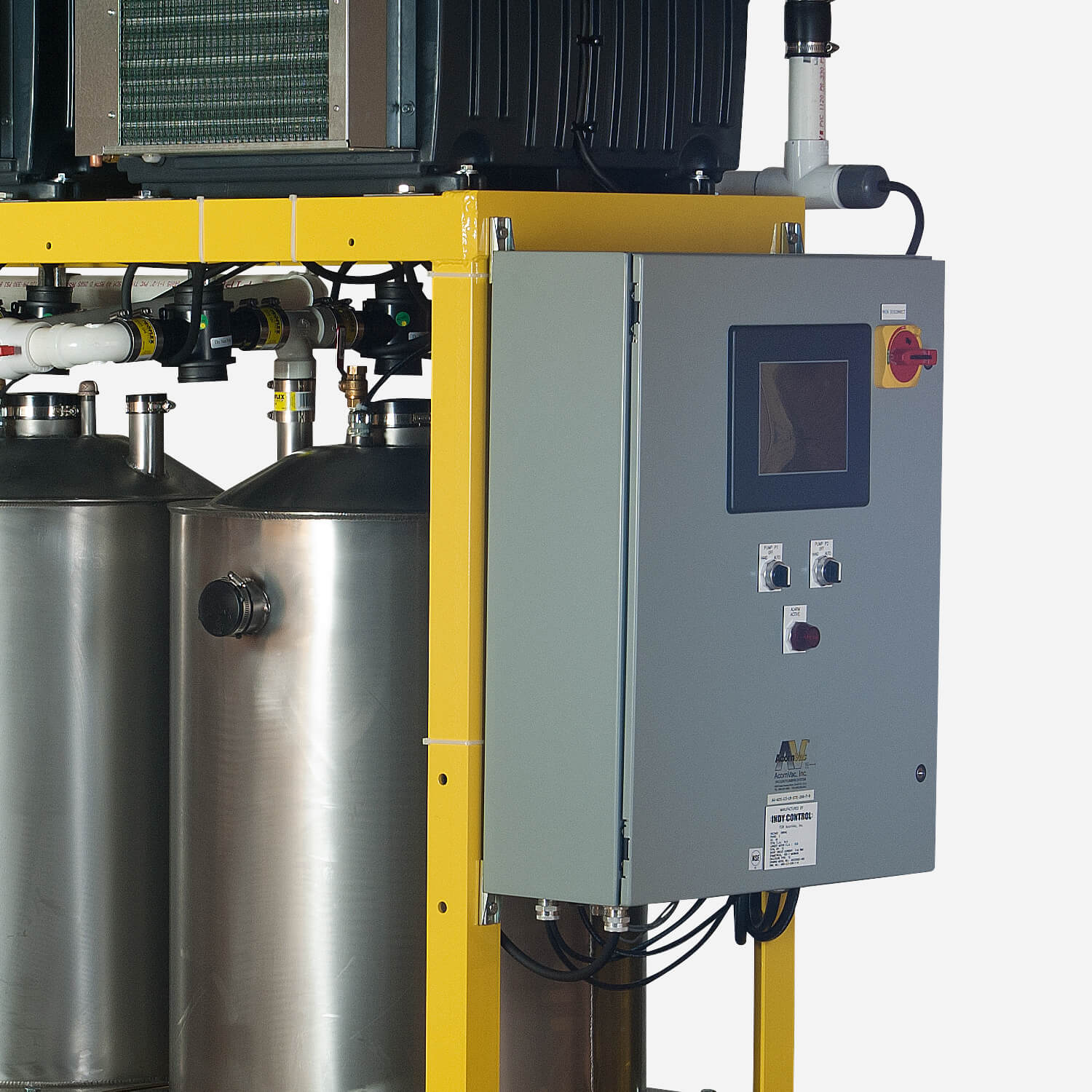

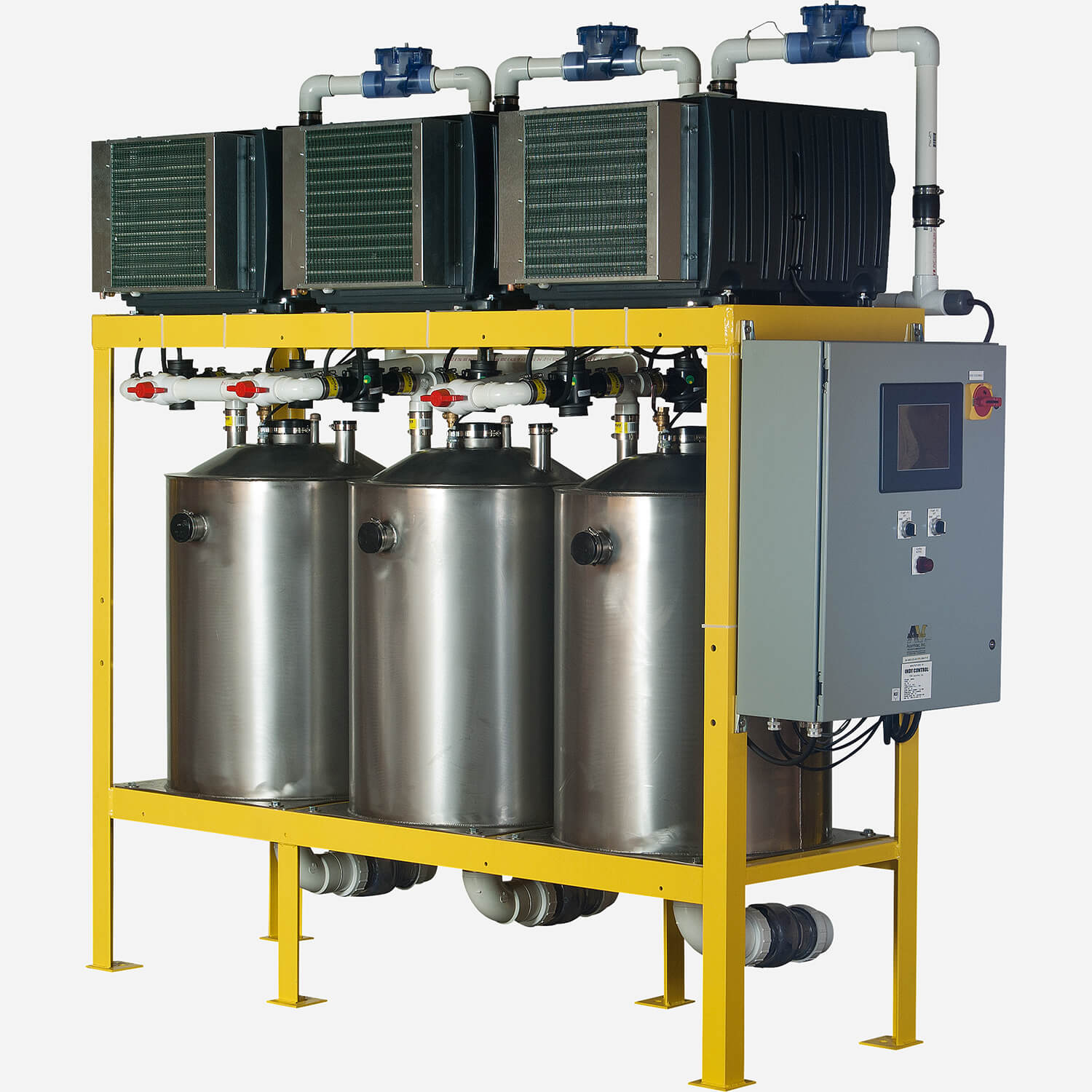

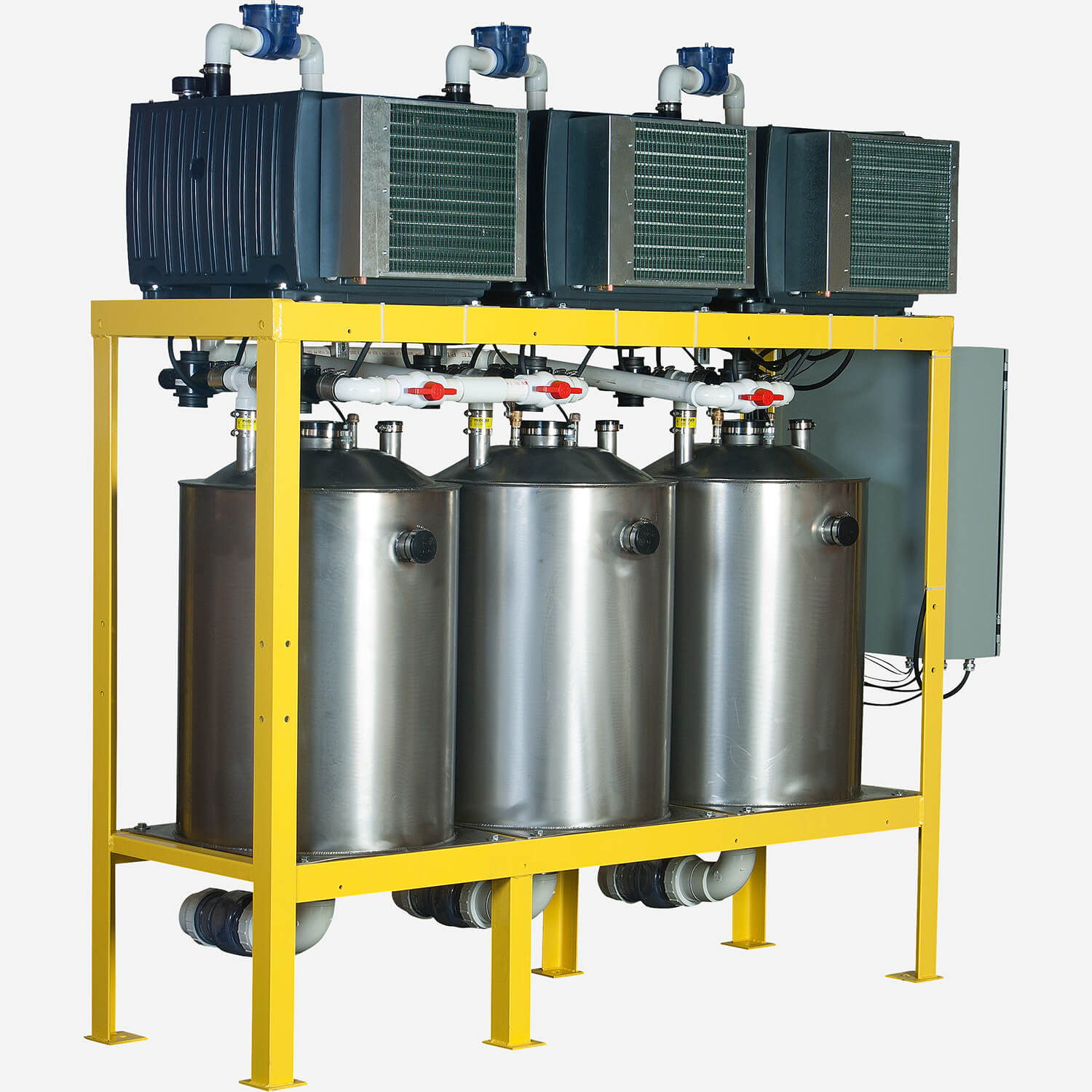

High Capacity fully redundant single frame factory assembled vacuum center consists of three 60 gallon T304 stainless steel waste collection tank, three 5 HP recirculating water sealed liquid ring vacuum pumps and a PLC driven automatic control panel.Product Function:
  • High Capacity Fully Redundant Design: 90”[230cm] Long x 36”[91.5cm] Wide x 7’-6”[2.3m] Tall
  • System Weights
    • Dry: 1450lbs [650kg]
    • Wet: 3350lbs [1500kg]
  • Triple 60 gallon T304 stainless steel waste collection tanks each have a 2” pipe size side waste inlet connection and 3” swing check waste outlet connection.
  • Triple 5 HP vacuum pumps each have a 1/2” water supply inlet for pump water jacket fill float valve and a 1/2” overflow outlet. Pump water is fully recirculated through a cooling system requiring no continuous water supply.
  • Industrial grade panel has PLC driven automation control of vacuum pumps and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light, HOA switches and an operator interface with digital display which shows vacuum system pressure and alarm status.
  • Available 3-Phase 60 Hz Voltages
    • 208 VAC – 51.6 FLA
    • 480 VAC – 29.8 FLA
  • UPC and CUPC compliant
