Model AV-30S-2.2-LR-ST
150 Series Vacuum Center System
The 150 Series vacuum toilet and fixture waste system effectively and efficiently collects waste with a single 30-gallon collection tank and a PLC driven automatic control panel.
- Single frame, factory-assembled vacuum center
- Compact size alleviates space constraints
- UPC and CUPC compliant
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | AcornVac General Brochure (pdf) | 0 | 6 MB | ||
| | AcornVac boosts security and reduces water use at the Salinas Valley State Prison Silver LEED Project | 0 | 1 MB | ||
| | Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail" | 0 | 4 MB |
Specifications
| Collection Tanks Quantity | 1 |
| Vacuum Pump Volume (US Gal. Each) | 30 |
| Vacuum Pump Type | Recirculating Liquid Ring |
| Vacuum Pump Quantity | 2 |
| Vacuum Pump HP | 2 |
| Maximum "LPV" | 20 |
| Maximum Continuous Flow (GPM) | 5 |
Details

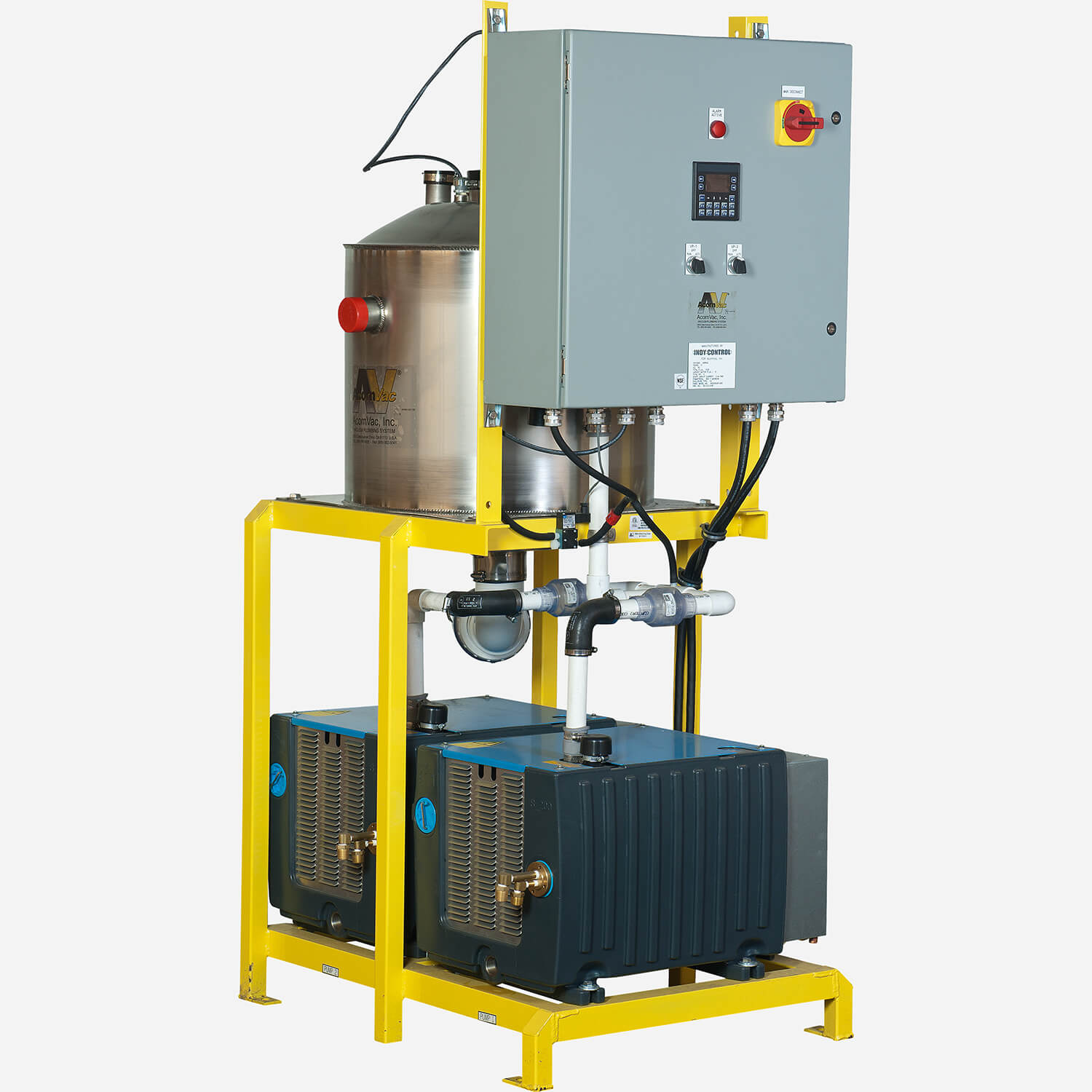

Single frame factory assembled vacuum center consists of a single 30 gallon T304 stainless steel waste collection tank, two 2 HP recirculating water sealed liquid ring vacuum pumps and a PLC driven automatic control panel.Product Function:
- Compact Design:
- 41”[104cm] Long x 27-1/2”[70cm] Wide x 5’-10”[1.8m] Tall
- System Weights
- Dry: 650lbs [300kg]
- Wet: 1050lbs [475kg]

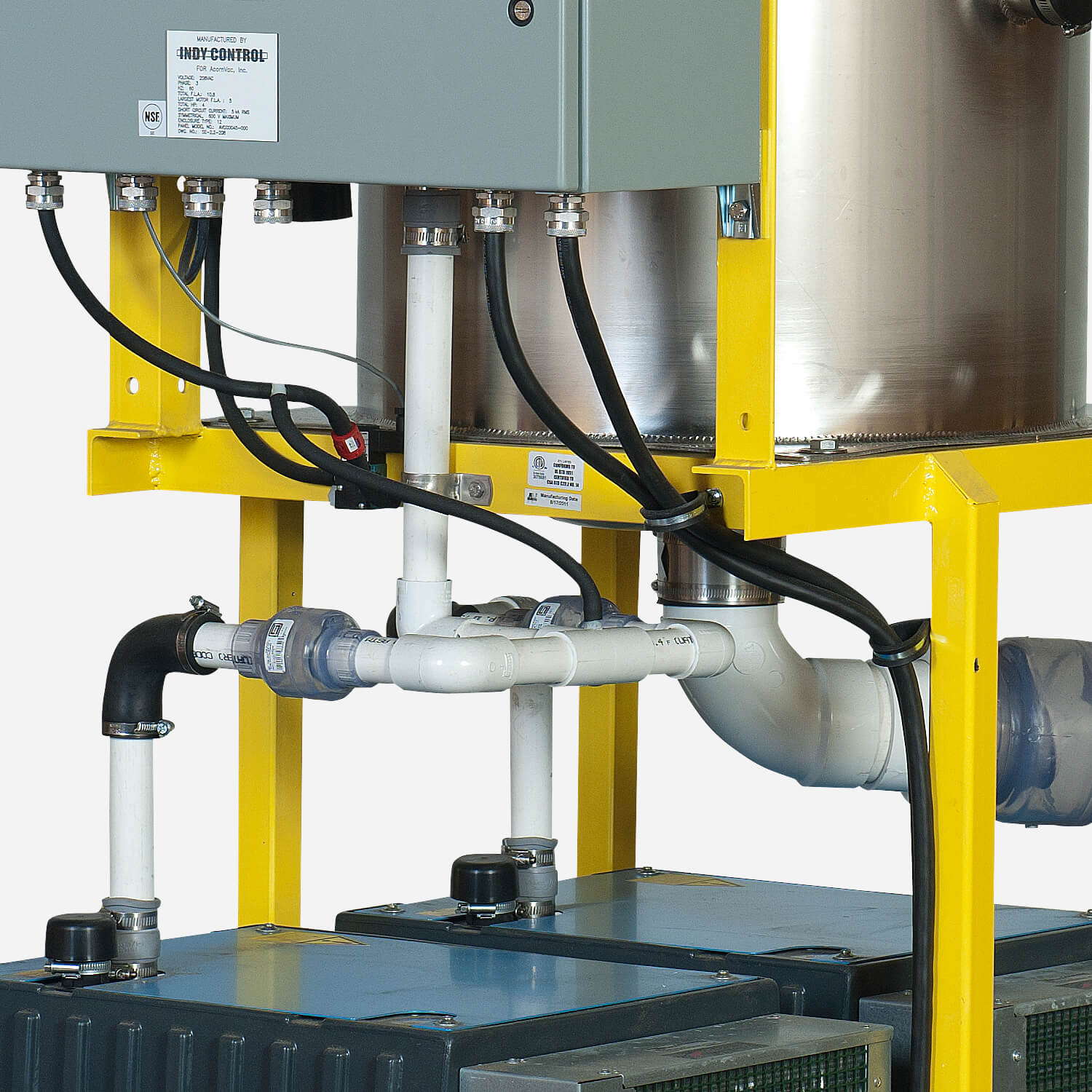

- 30 gallon T304 stainless steel waste collection tank has 2” pipe size side waste inlet connection and 3” swing check waste outlet connection.

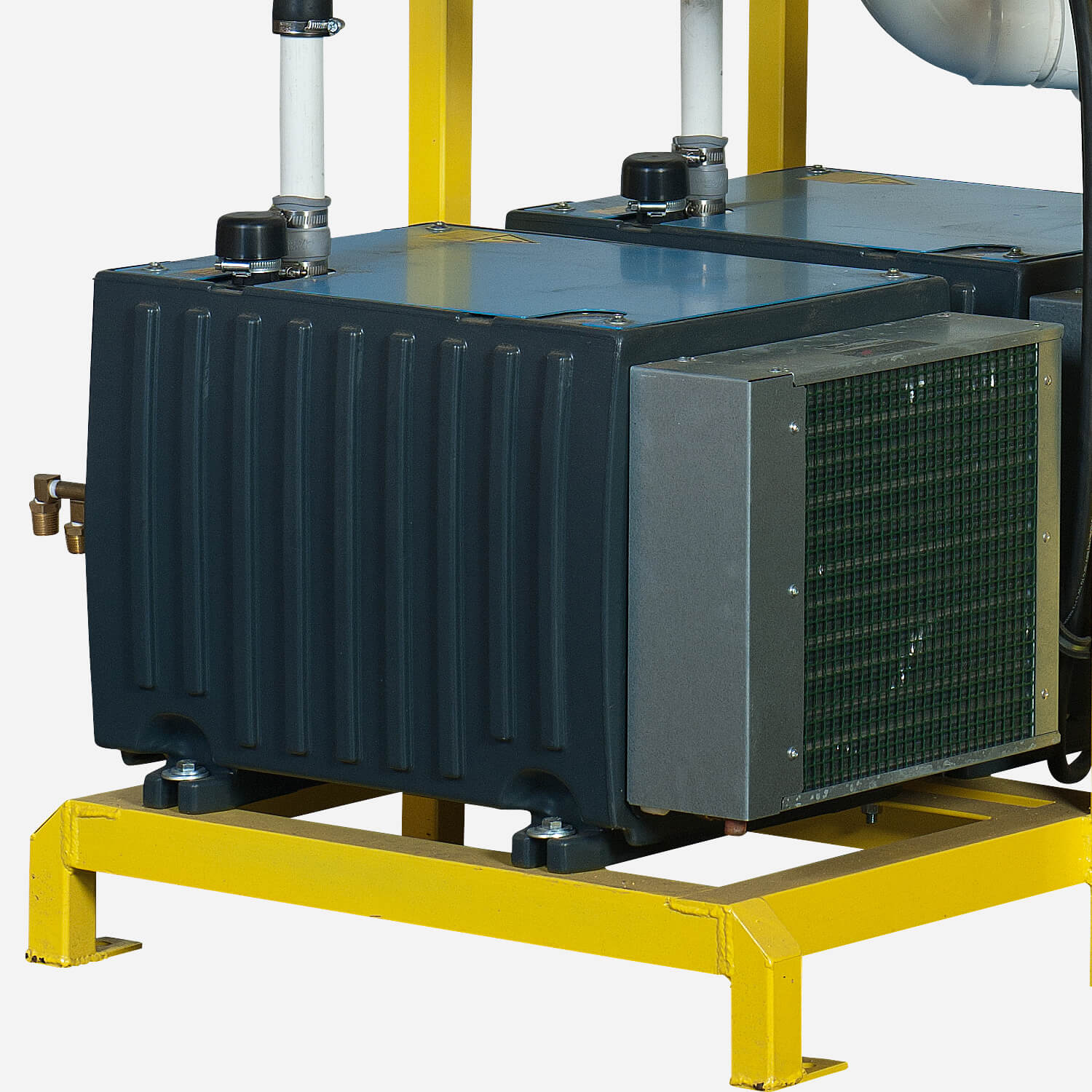

- Dual 2 HP vacuum pumps each have a 1/2” water supply inlet for pump water jacket fill float valve and a 1/2” overflow outlet. Pump water is fully recirculated through a cooling system requiring no continuous water supply.

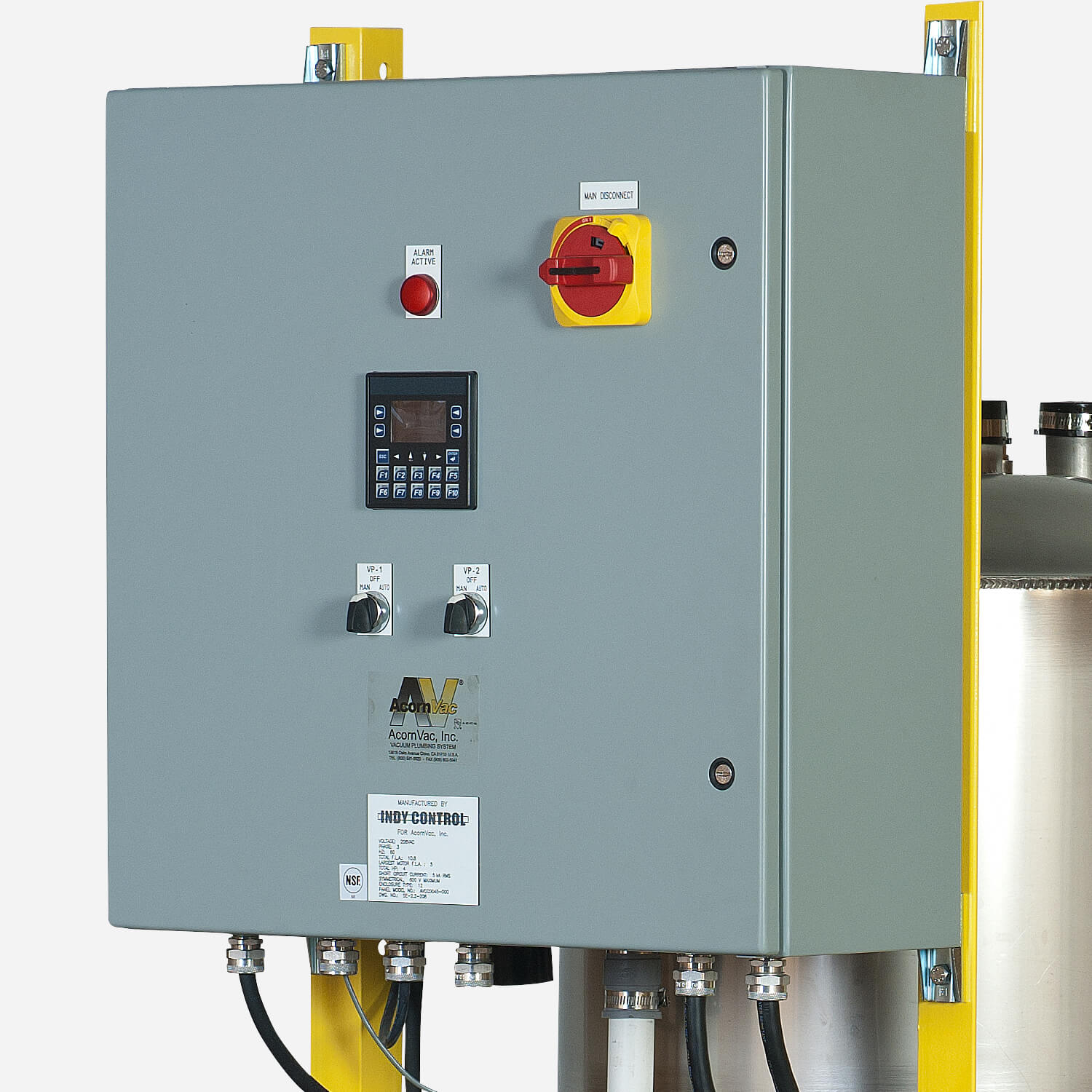

- Industrial grade panel has PLC driven automation control of vacuum pumps and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light, HOA switches, and an operator interface with digital display which shows vacuum system pressure and alarm status.
- Available 3-Phase 60 Hz Voltages
- 208 VAC – 11.3 FLA
- 480 VAC – 6.5 FLA
- UPC and CUPC Approved
