Model AV-30S-2.3-LR
300 Series Vacuum Center System
The 300 Series vacuum toilet and fixture waste system effectively and efficiently collects waste with two 30-gallon collection tanks, dual recirculating pumps and a PLC drive automatic control panel.
- Single frame, factory-assembled vacuum center
- Compact size alleviates space constraints
- UPC and CUPC compliant
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | AcornVac General Brochure (pdf) | 0 | 6 MB | ||
| | AcornVac boosts security and reduces water use at the Salinas Valley State Prison Silver LEED Project | 0 | 1 MB | ||
| | Article: Corrections Forum, March 2007 - "Quick Payback for Green Expenditures Expected for Regional Jail" | 0 | 4 MB |
Specifications
| Collection Tanks Quantity | 2 |
| Vacuum Pump Volume (US Gal. Each) | 30 |
| Vacuum Pump Type | Recirculating Liquid Ring |
| Vacuum Pump Quantity | 2 |
| Vacuum Pump HP | 3 |
| Maximum "LPV" | 55 |
| Maximum Continuous Flow (GPM) | 15 |
Details

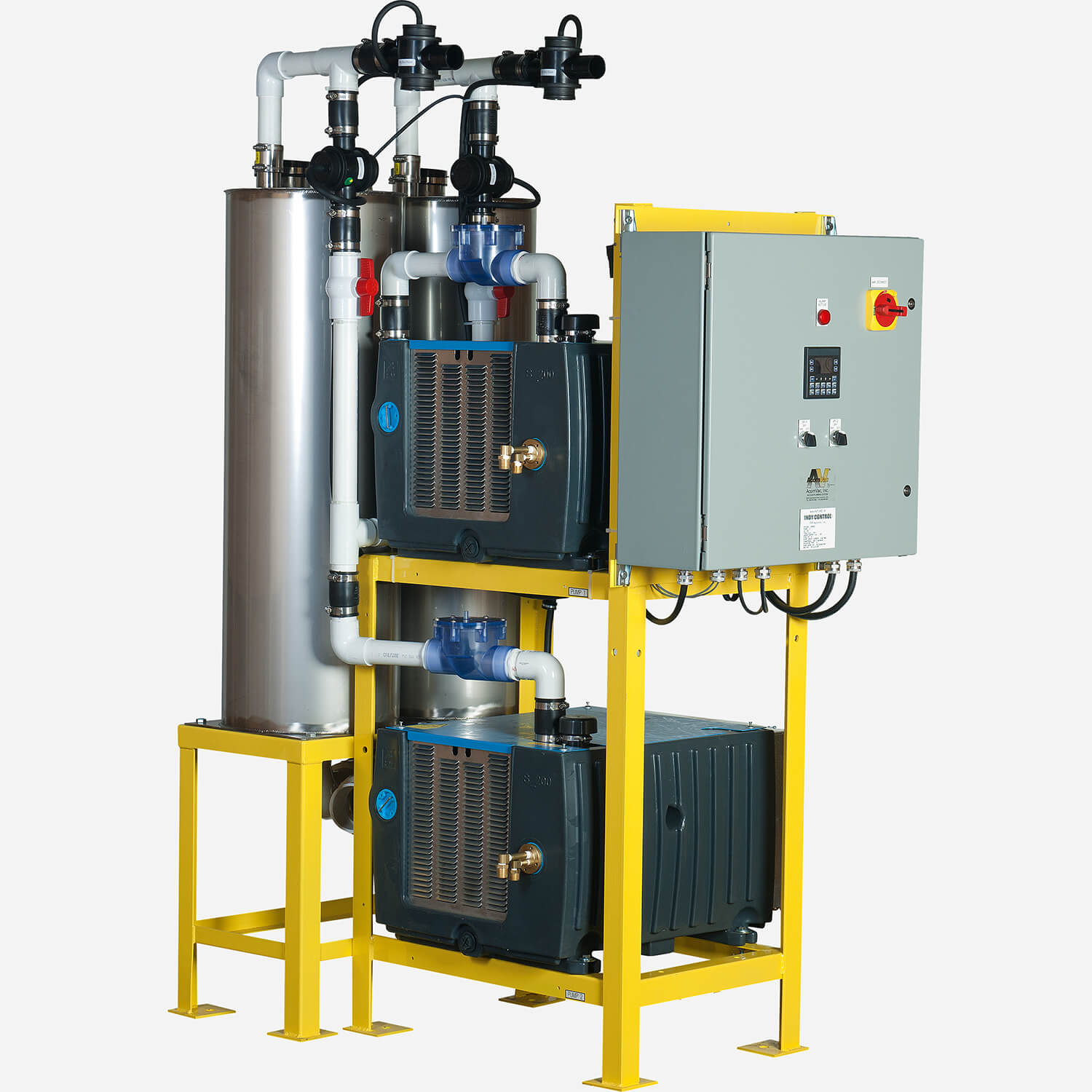

Fully redundant factory assembled vacuum center consists of one frame having two 30 gallon T304 stainless steel waste collection tanks bolted to second frame having two 3 HP recirculating water sealed liquid ring vacuum pumps and a PLC driven automatic control panel.Product Function:
- Fully Redundant & Compact Design: 65-1/2”[165cm] Long x 33”[84cm] Wide x 6’-8”[2m] Tall
- System Weights
- Dry: 750lbs [350kg]
- Wet: 1450lbs [650kg]

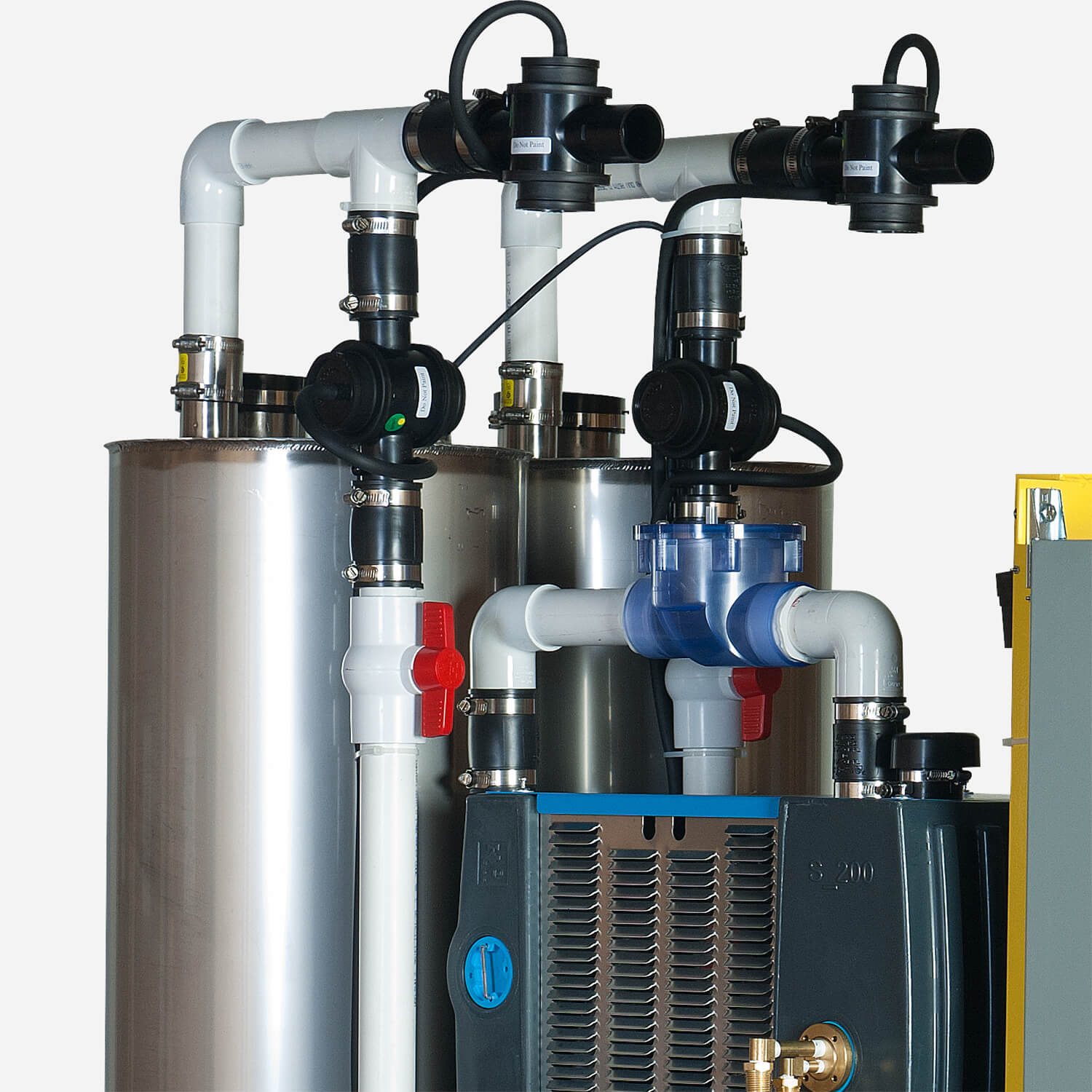

- Dual 30 gallon T304 stainless steel waste collection tanks each have a 2” pipe size top waste inlet connection and 3” swing check waste outlet connection.

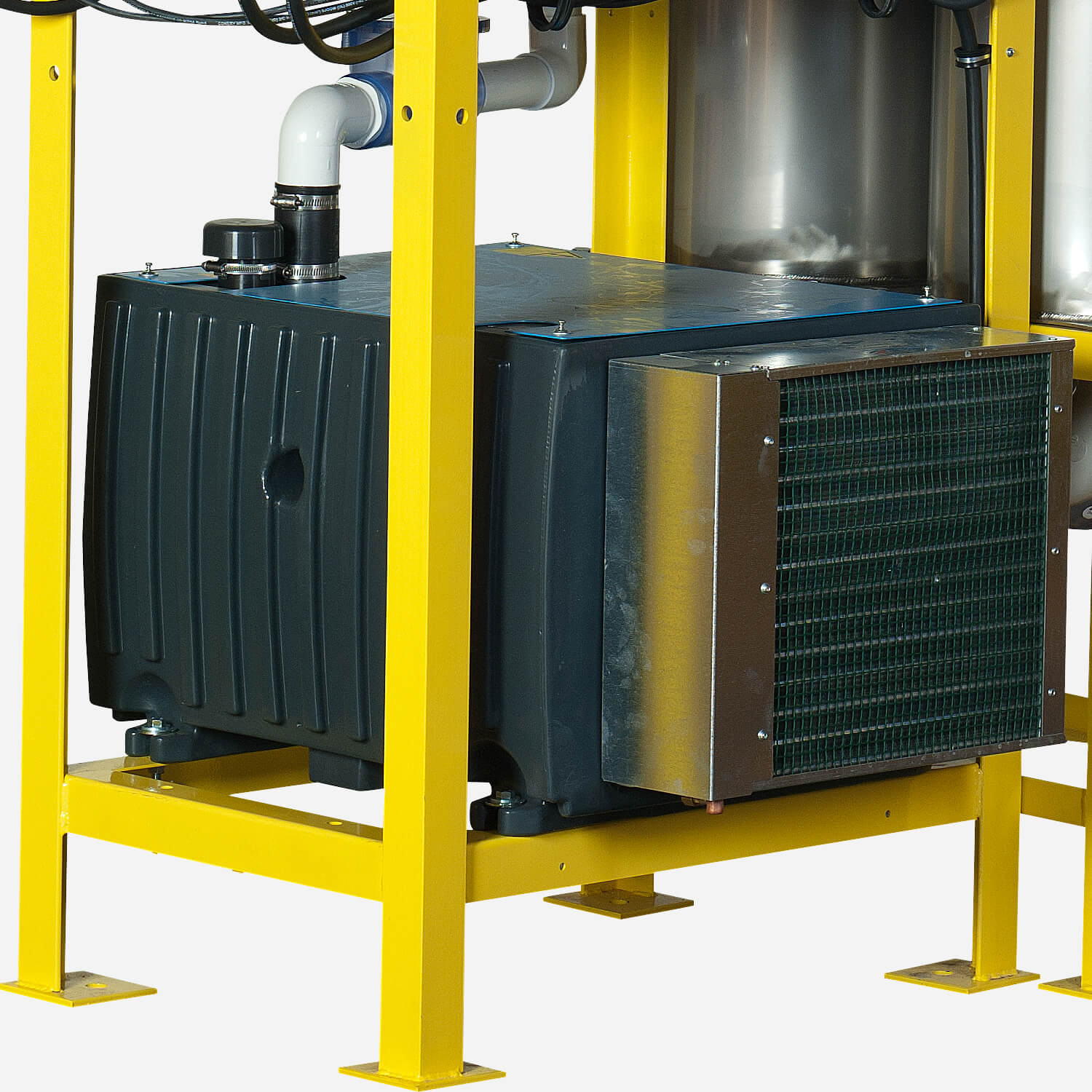

- Dual 3 HP vacuum pumps each have a 1/2” water supply inlet for pump water jacket fill float valve and a 1/2” over flow outlet. Pump water is fully recirculated through a cooling system requiring no continuous water supply.

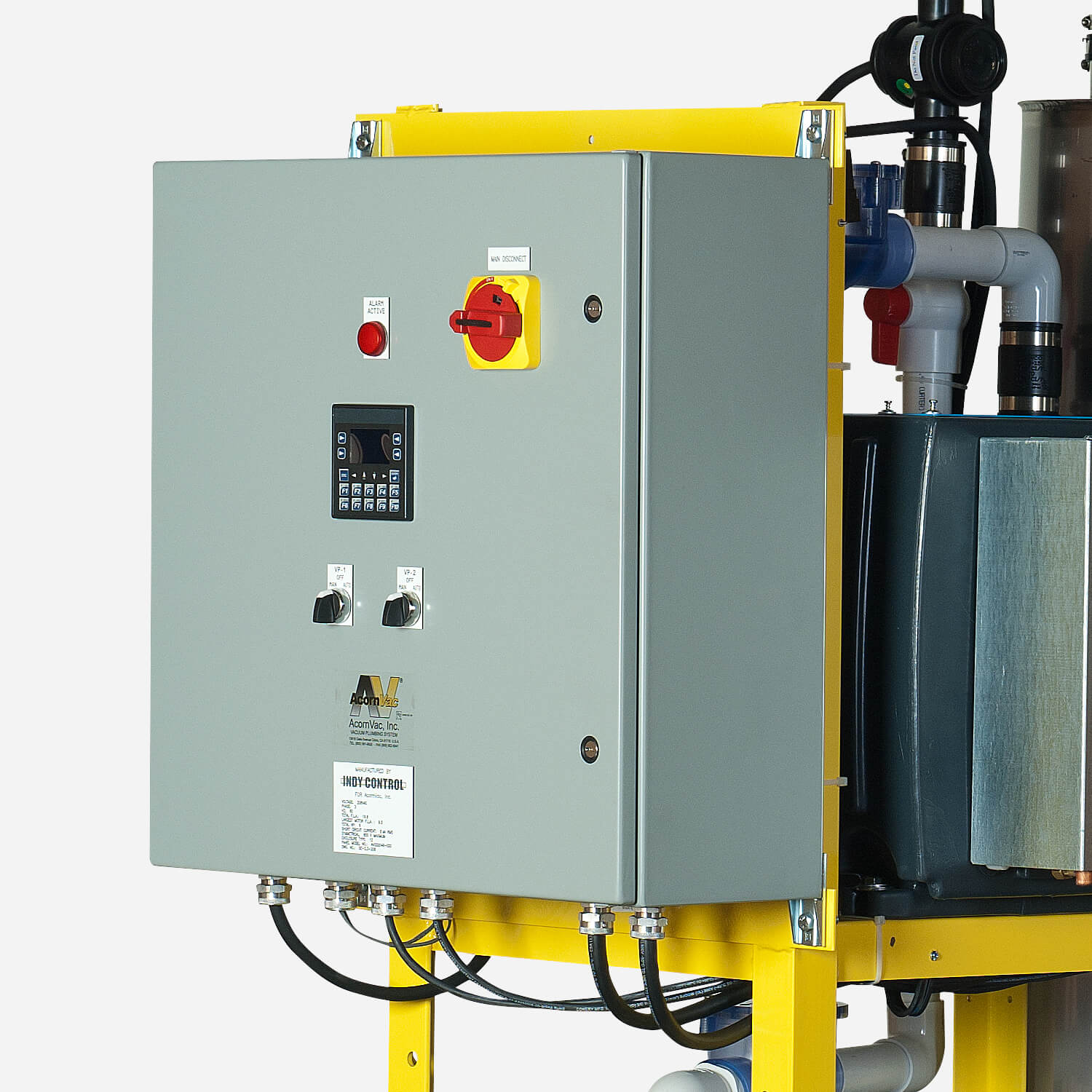

- Industrial grade panel has PLC driven automation control of vacuum pumps and waste collection and discharge cycles. Panel includes a main disconnect, an alarm light, HOA switches and an operator interface with digital display which shows vacuum system pressure and alarm status.
- Available 3-Phase 60 Hz Voltages
- 208 VAC – 20.3 FLA
- 480 VAC – 11.7 FLA
- UPC and CUPC compliant
