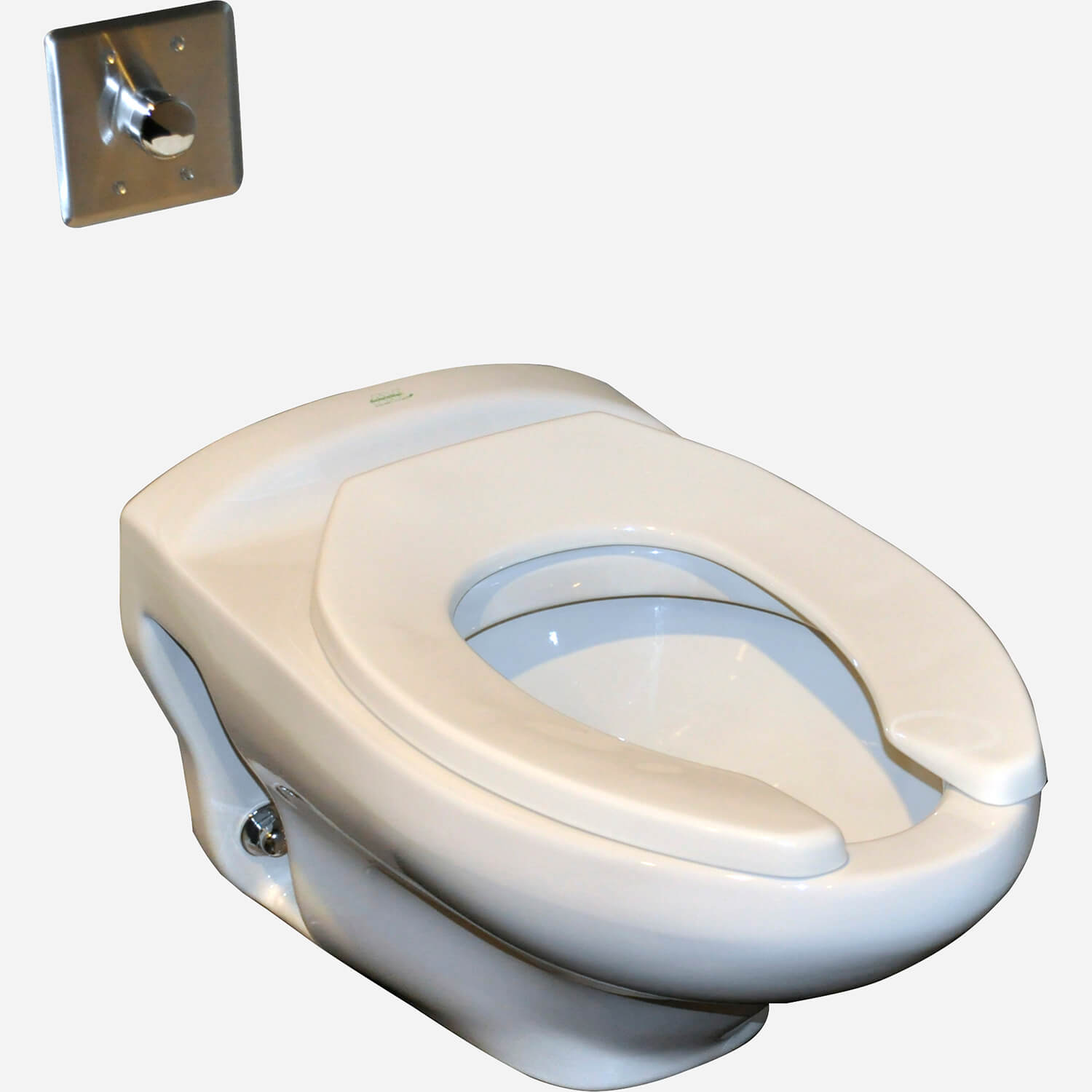

Vitreous China Vacuum Toilet, Off-Floor

This vitreous china vacuum toilet is designed for use with an Acorn Vac Vacuum Waste System. When used in a vacuum plumbing system, vacuum toilets produce no flush overspray, leading to less spread of germs.

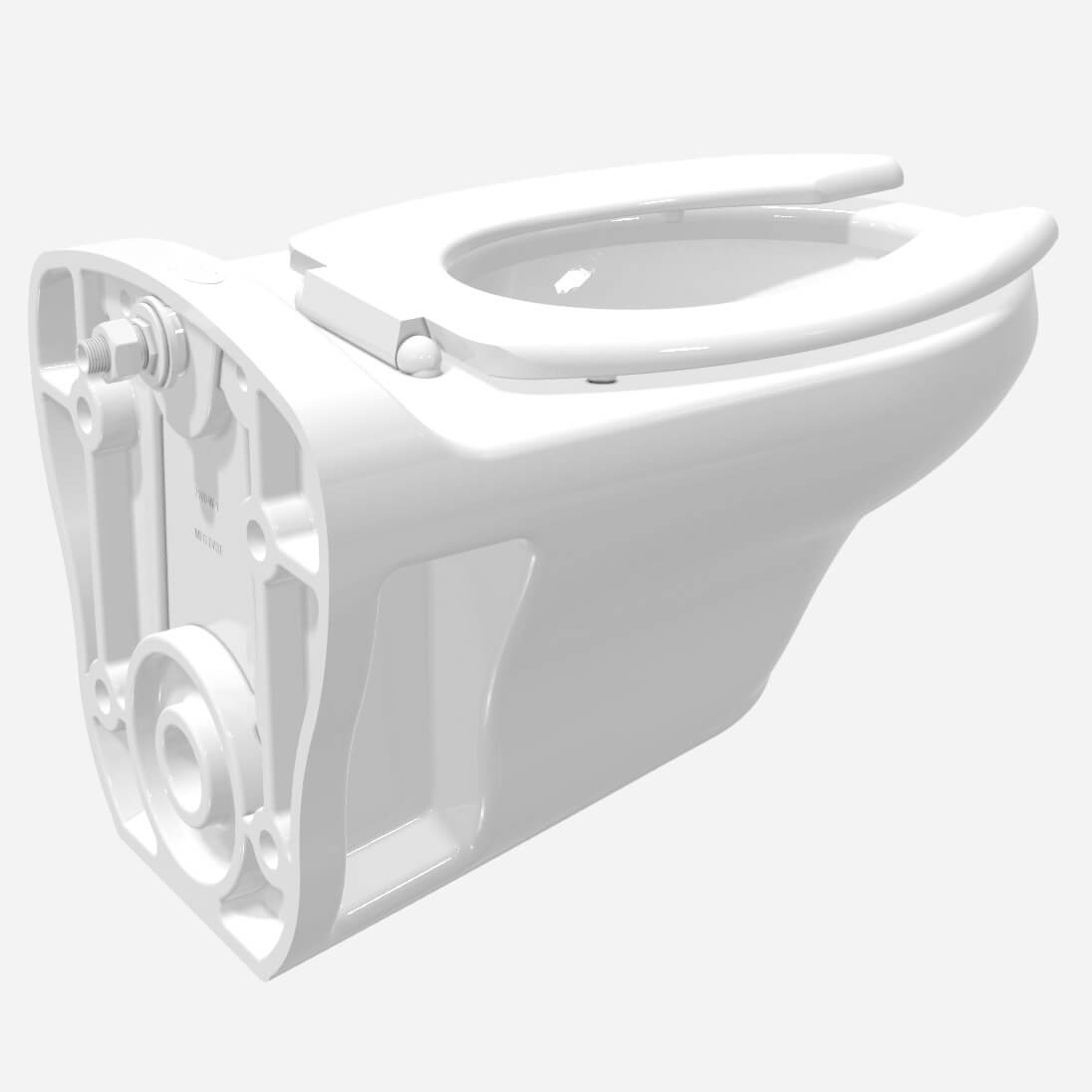

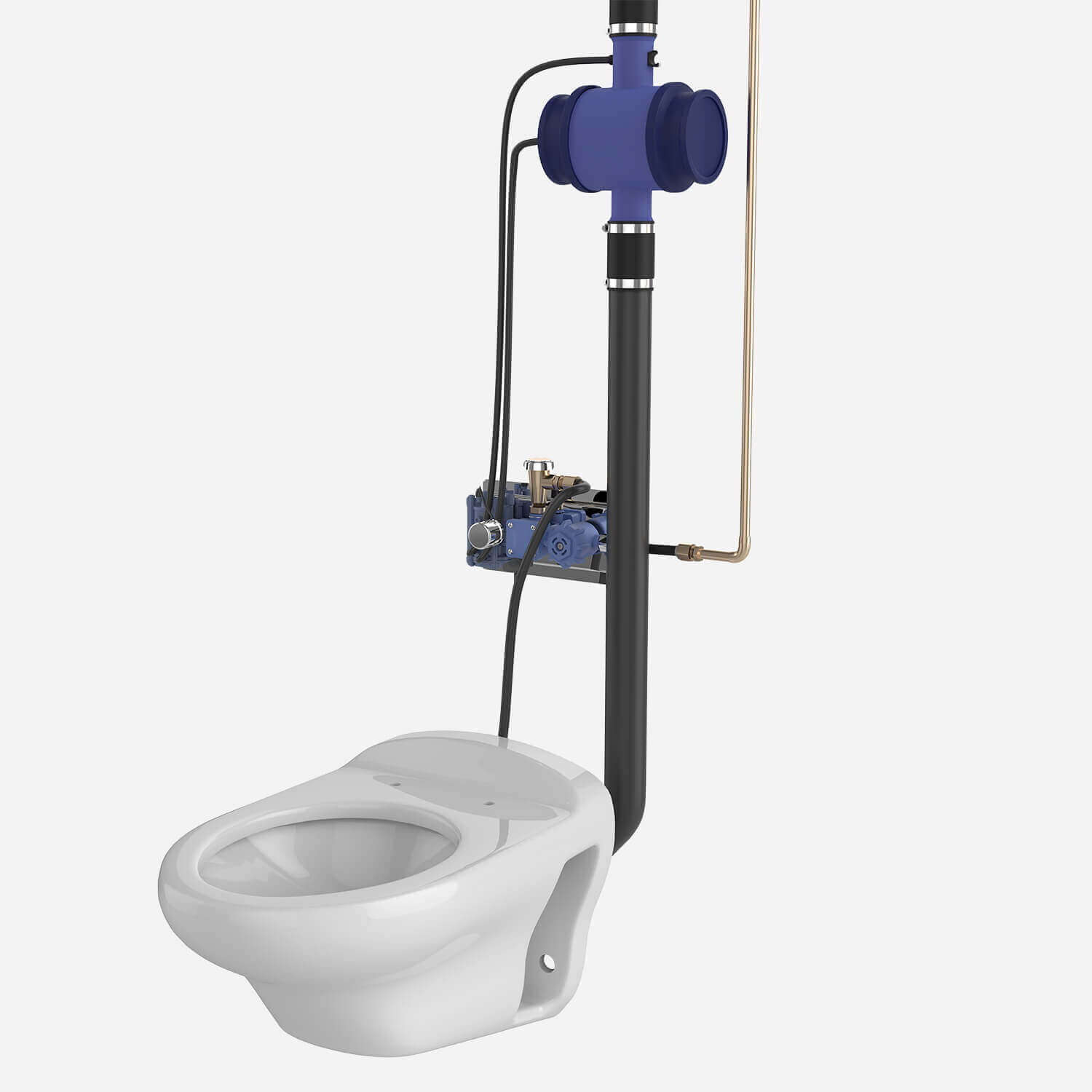

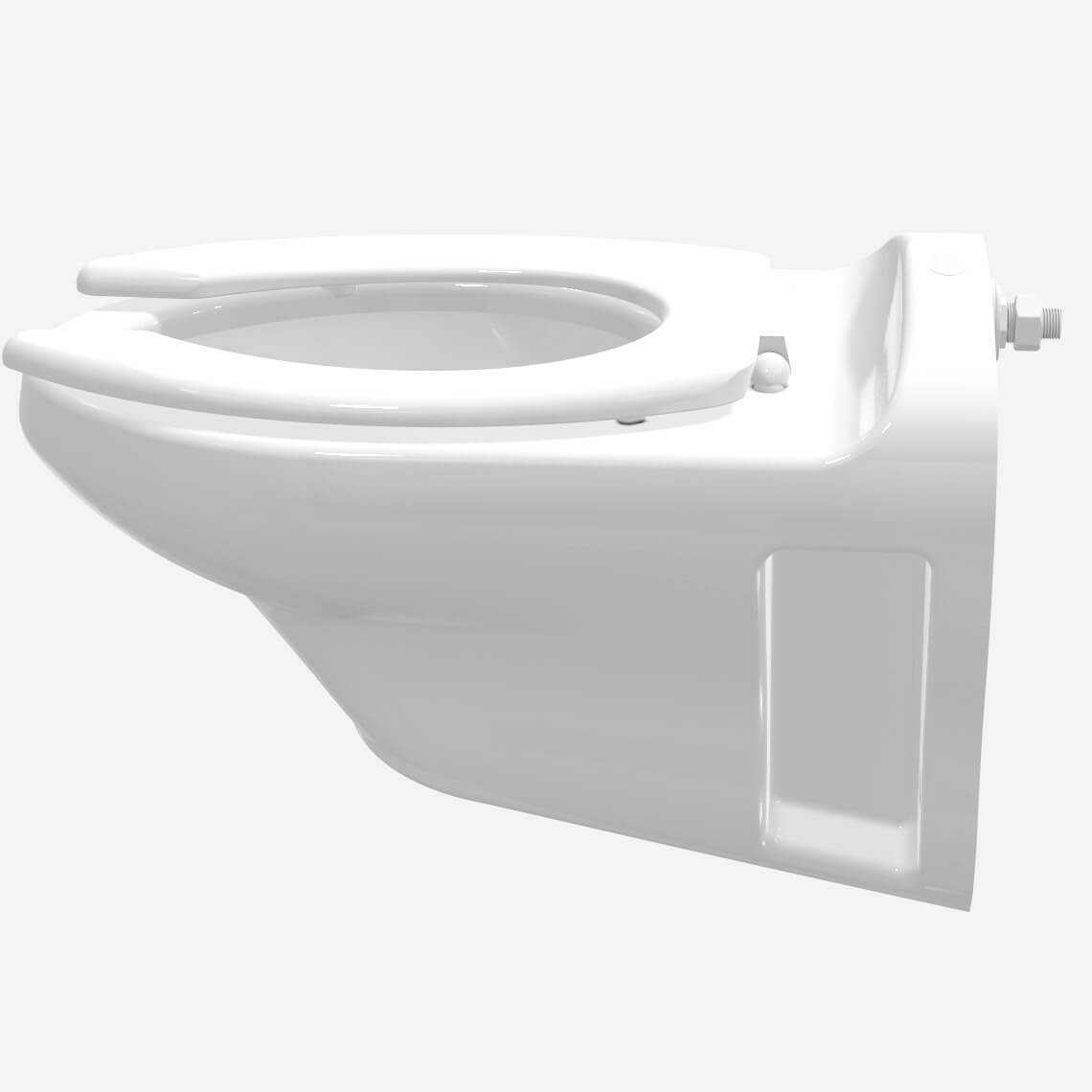

This toilet is designed to be wall-mounted off the floor for easy cleaning. The toilet features an elongated bowl. Wall Supply configuration is recommend for Acorn Vac installations. The vacuum system connects with the toilet's wall waste outlet.

BENEFITS OF VACUUM PLUMBING

Vacuum Toilets use as little as 0.26 gallons (1 liter) per flush saving up to 68% over standard gravity toilets.

Vacuum plumbing draws air in and flushing produces no overspray, which leads to a healthier and safer environment.

Vacuum toilets are designed to provide an effective and environmentally friendly flush requiring less than 0.35 gallon (1.32 liters) per flush

The differential between atmospheric and vacuum pressure moves waste through the system and assists with reducing costs associated with clearing main waste line blockages.

VACUUM TOILETS

A constant vacuum pressure in the waste piping system draws air into the toilet when flushed; this eliminates any splash or flush plume from the bowl as the wastewater is pulled into the piping system.

INFECTION CONTROL - A vacuum flush toilet eliminates the "flush plume" thus reducing the spread of germs. NSF® test confirmed no detectable overspray.

ADAPTIVE DESIGN - Eliminating the need for under slab or under floor piping means greater flexibility in plumbing layout and adaptive reuse of space.

TOILET FEATURES

• Elongated bowl
• Easy to install
• Wall waste configured for vacuum plumbing
• Off-Floor mounting -easier cleaning
• When installed according to local code, these toilets are ADA compliant.
